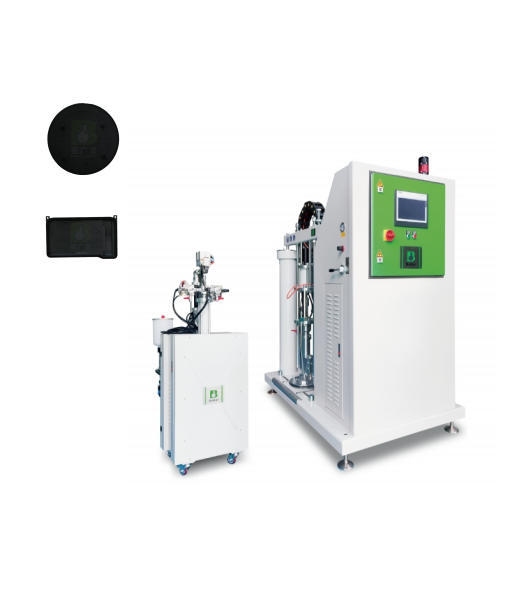

Liquid Silicone Earphone Charging Cradle Vent Valve Overmolding Machine
product advantages
1. Independent dual-cylinder injection system ensures injection stability. Capable of injecting products with different resin volumes.
2.Independent direct-pressure clamping mechanism allows for the use of molds with varying wall thicknesses.
3. High-efficiency disc mechanism featuring slip ring water circulation and mold heating.
4. Two-station disc (one upper mold, two lower molds) enabling automated production.
5. Servo-driven turntable ensures smooth and stable operation.
6. Mechanical positioning device to ensure accurate positioning and protect the mold.
7. Silicone-specific oil circuit design to ensure stable injection volume.
8. Independent system design for flexible and convenient use. Can also achieve single-mold production.
| Specifications: |
|
| BETTER Vertical Rotary LSR injection molding machine |
| clamping force | 85tons |
| size | Φ1180 |
| max mold size | 430*430(600*350)mm |
| Min mold height | 210+50mm |
| mold stroke | 250mm |
| max daylight | 460+50mm |
| ejector force | 3tons |
| Thimble diameter | Φ25 |
| ejector distance(product) | 105(75)mm |
| Max hydraulic pressure | 140kg/cm2 |
| cooling water | 1500-1800liters/hr |
| ElectrothermaL | 4kw |
| Motor | 13kw |
| Dimention (L*W*H) | 2.84*2.13*2.86/3.67 |
| weight | 5.5tons |
When is Liquid Silicone Rubber the Best Choice?
One of the primary advantage of liquid silicone rubber elastomers. LSR materials are offered in a wide variety of grades: general purpose, food-grades, medical, self-adhesive, low-volatile, optically clear and numerous other specialty grades, each in a range of durometers – from very firm to very soft. Liquid silicone rubber elastomers are also inherently insulating, offering superior heat and flame resistance ideal for electrical, automotive, and industrial applications. LSRs are also naturally biocompatible and hypo-allergenic making them a choice material for skin-contact products. LSR’s physical properties are also a key factor contributing to their popularity. Due to its high compression set, an LSR part will maintain its original shape after numerous compressions/uses, even in extreme high and low temperatures – a differentiating factor between liquid silicone rubber and other elastomeric polymers. These highly versatile silicone materials are naturally translucent white in color however they can be pigmented in a variety of colors.
Just about every industry imaginable has discovered the opportunities that LSR and the liquid injection molding process offers for their products, including:
1,Seals, gaskets and thin membranes;
2,Insulators and cushions;
3,Valves and bladders;
4,Respiratory masks;
5,Syringes and IV components;
6,Wearable health monitoring devices;
7,Electronic components ;
8,Food and beverage products;
