Liquid Silicone Rubber Baby Teether Stick Production Equipment Teething Stick Food-Grade LSR Machine
S-guangyu will provide you with an integrated solution of machinery, mold and support services for manufacturing medical parts:
1. Independent double-cylinder injection system to ensure the injection stability. Different glue can be injected.
2. Independent direct pressure clamping unit,different mold thickness can be chose.
3. Mechanical positioning device to ensure its accurate positioning and protect the mold.
4. Independent system design, it is flexible and convenient to use. Single-mode production is also possible.
5. Wide range of technical options
| Specifications: |
|
| BETTER Vertical Rotary LSR injection molding machine |
| clamping force | 85tons |
| size | Φ1180 |
| max mold size | 430*430(600*350)mm |
| Min mold height | 210+50mm |
| mold stroke | 250mm |
| max daylight | 460+50mm |
| ejector force | 3tons |
| Thimble diameter | Φ25 |
| ejector distance(product) | 105(75)mm |
| Max hydraulic pressure | 140kg/cm2 |
| cooling water | 1500-1800liters/hr |
| ElectrothermaL | 4kw |
| Motor | 13kw |
| Dimention (L*W*H) | 2.84*2.13*2.86/3.67 |
| weight | 5.5tons |
| Parameter |
|
| BETTER LSR Dosing System |
| Charateristics | A/B ratio 1:1 |
| Item No | Better 216 |
| Shot volume | 0 - 1500g |
| Material | 20L / 200L |
| Ratio | 1:1 |
| Motor source | Hydraulic |
| Size | 1375 x 1030 x 2280 |
| Weight | 850KG |
| Mix mode | Static Mixing |
| Work style | Plunger pump |
| Application | ALL |
When is Liquid Silicone Rubber the Best Choice?
One of the primary advantage of liquid silicone rubber elastomer. LSR materials are offered in a wide variety of grades: general purpose, food-grades, medical, self-adhesive, low-volatile, optically clear and numerous other specialty grades, each in a range of durometers – from very firm to very soft. Liquid silicone rubber elastomer are also inherently insulating, offering superior heat and flame resistance ideal for electrical, automotive, and industrial applications. LSRs are also naturally biocompatible and hypo-allergenic making them a choice material for skin-contact products. LSR’s physical properties are also a key factor contributing to their popularity. Due to its high compression set, an LSR part will maintain its original shape after numerous compression/uses, even in extreme high and low temperatures – a differentiating factor between liquid silicone rubber and other elastomer polymers. These highly versatile silicone materials are naturally translucent white in color however they can be pigmented in a variety of colors.

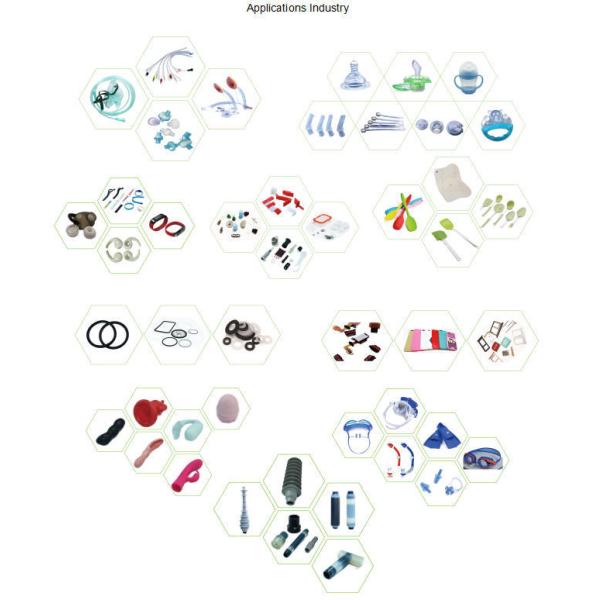

Just about every industry imaginable has discovered the opportunities that LSR and the liquid injection molding process offers for their products, including:
1,Seals, gaskets and thin membranes;
2,Insulators and cushions;
3,Valves and bladders;
4,Respiratory masks;
5,Syringes and IV components;
6,Wearable health monitoring devices;
7,Electronic components ;
8,Food and beverage products;
